Fieldpiece SMG5 – Digital Megohm Meter
Digital megohm meter for insulation testing and fault diagnosis
Evaluate Compressor Insulation Helps to Predict Compressor Failure

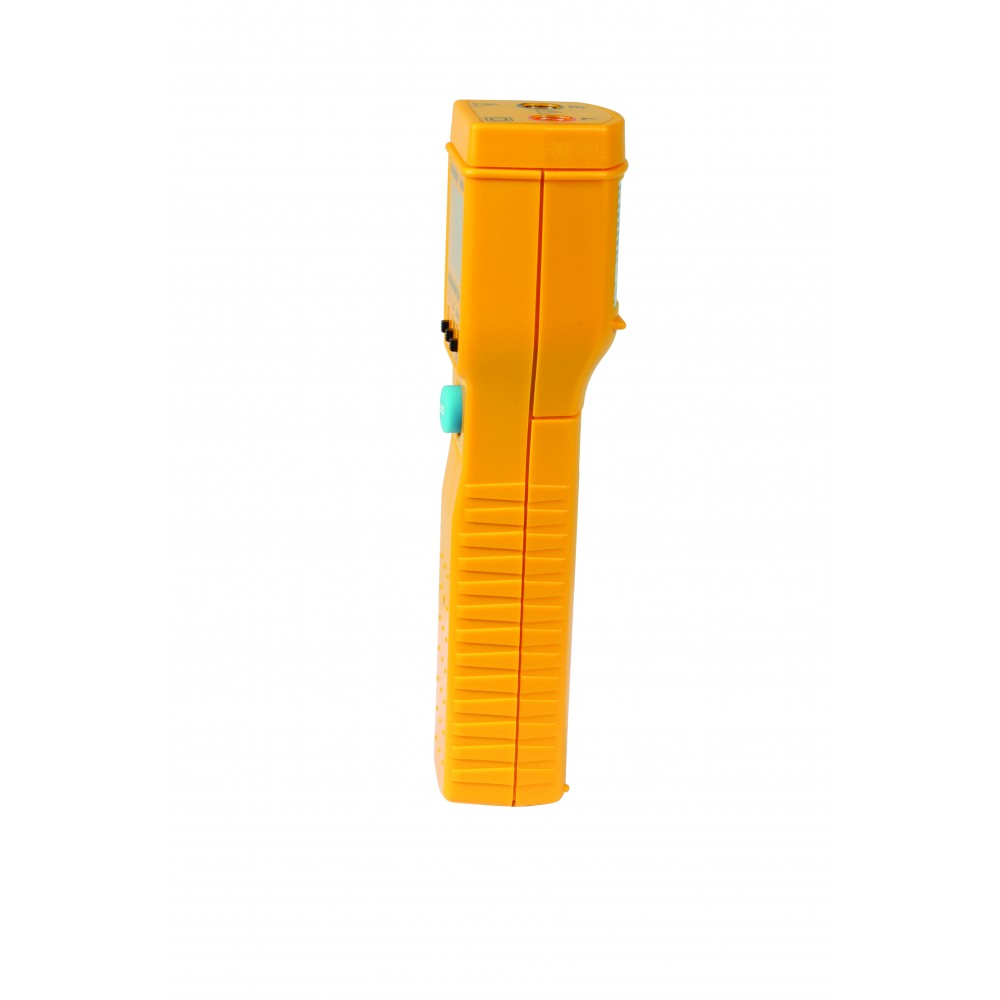

Fieldpiece SMG5 – Digital Megohm Meter
Key Features
- 1000VDC voltage source
- Measure up to 2000 megohm
- Backlit LCD
- Predict compressor failure
- Auto-off to extend battery life

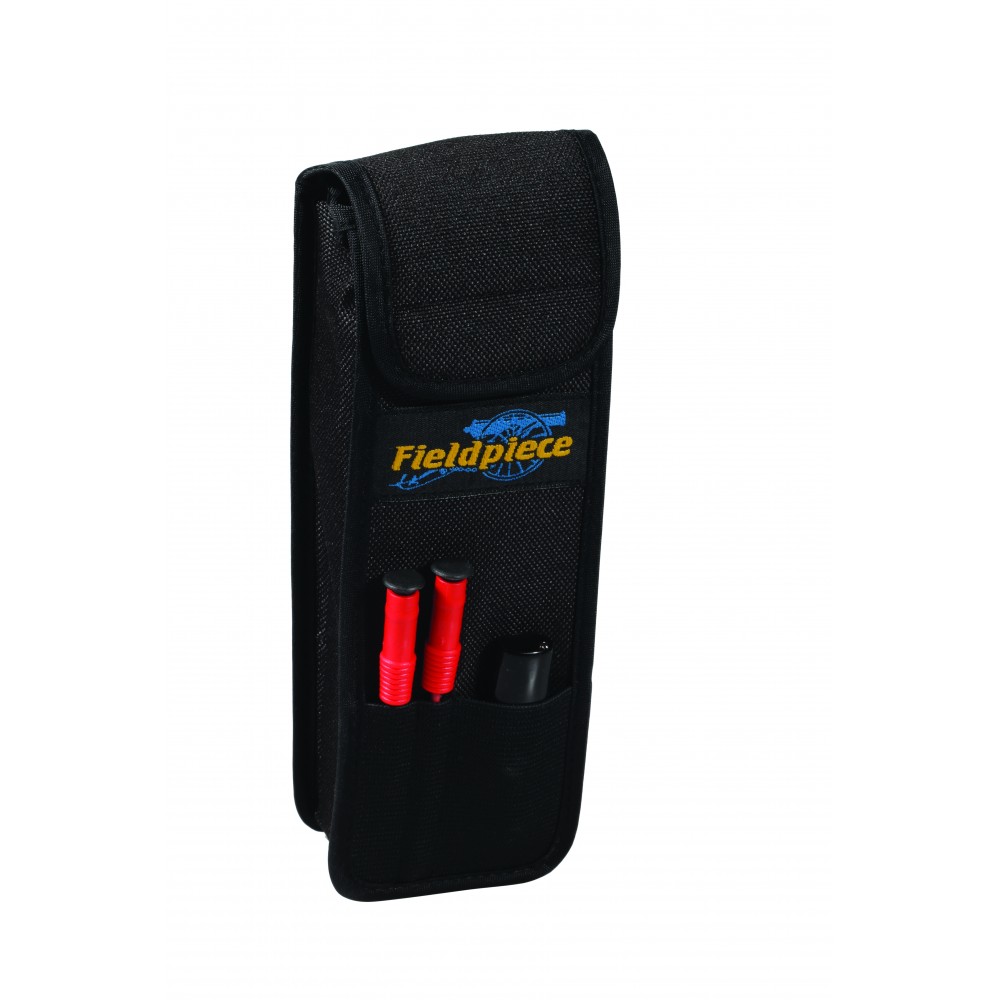

- Case, alligator clip, leads with removable tips
£109.30 + VAT
Specification for: Fieldpiece SMG5 – Digital Megohm Meter
| Battery | 1 x Alkaline 9V |
| Country Of Origin | TW |
| Full EAN | 8726410004484 |
| Full UPC | 872641000448 |
| Model | SMG5 |
| Range | Electrical measurement |
| Tarrif Code | 9030310090 |
| Type | Multimeter |
Evaluate Compressor Insulation Helps to Predict Compressor Failure The Fieldpiece Digital Megohm Meter, model SMG5, is a compact standalone meter designed for checking HVAC compressor insulation. The SMG5 provides a 1000V voltage source, monitors current, and displays the resistance between the test points. Maximum current output is <1mA. It can be used to determine the condition of insulation from winding to ground in a motor, compressor, or transformer. Includes a case, alligator clip lead tip and leads with removable tips. To test resistance, a DMM supplies low voltage (<1V) to the test points and is capable of delivering only a few milliamps. Its not a high enough voltage to detect high resistance problems that might indicate moisture and other contaminants and its not enough current to measure lower values of resistance.
